Size Customized Hastelloy B-3 Sheet With High Temperature Stability / Processability
| MOQ: | 100KG |
| Price: | Price is negotiated based on the required specifications and quantity |
| Standard Packaging: | Standard export packaging, or packaging as required |
| Delivery Period: | 5-8 working days, depending on the parameters required for negotiation |
| Payment Method: | Payment Terms: Mainly T/T.. L/C, D/A, D/P, |
| Supply Capacity: | 5000 tons per month |
Detail Information
Place of Origin
China
Brand Name
Zhonggong Special Metallurgy
Certification
ISO Certificate
Model Number
Hastelloy B-3
Name:
Hastelloy B-3 Sheet
Density:
9.24g/cm³
Specification And Size:
Cut According To Customer Requirements
Delivery Status:
Black Or Bright
Product:
Bar, Plate, Pipe, Strip,etc
Chemical Composition:
Composed Of Elements Such As Nickel, Molybdenum, Cobalt, Etc., With A Nickel Content Of About 65%.
Different Names:
Hastelloy B-3、UNS N10675、NS323、W.Nr.2.4600
Corrosion Resistance Performance:
Excellent
Mechanical Performance:
Good
High Temperature Stability And Processability:
High
Highlight:
Customized Hastelloy B-3
,Hastelloy B-3 Sheet
Product Description
Size Customized Hastelloy B-3 Sheet With High Temperature Stability / Processability
Product Attributes
| Attribute | Value |
|---|---|
| Name | Hastelloy B-3 Sheet |
| Density | 9.24g/cm³ |
| Specification and size | Cut according to customer requirements |
| Delivery Status | Black Or Bright |
| Product | Bar, Plate, Pipe, Strip, etc |
| Chemical Composition | Composed of elements such as nickel, molybdenum, cobalt, etc., with a nickel content of about 65%. |
| Different Names | Hastelloy B-3、UNS N10675、NS323、W.Nr.2.4600 |
| Corrosion resistance performance | Excellent |
| Mechanical performance | Good |
| High temperature stability and processability | High |
Product Description

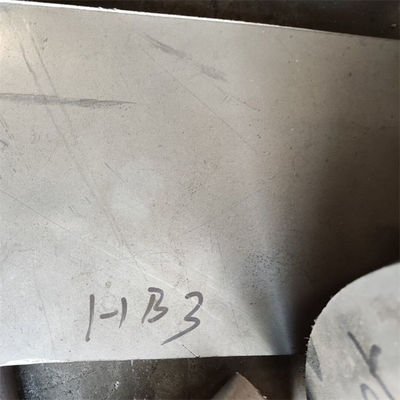

High performance corrosion-resistant Hastelloy B-3 sheet with complete size and thickness, cut into circles
Introduction to Hastelloy B-3
Hastelloy B3 is a nickel molybdenum alloy mainly added with elements such as chromium and iron.
Hastelloy B3, also known as Alloy B3 or UNS N10675, is a nickel based corrosion-resistant alloy with excellent corrosion resistance, especially in strong acid environments such as hydrochloric acid. Its chemical composition includes about 65% nickel, 28% molybdenum, 2% iron, and an appropriate amount of chromium.
Hastelloy B-3 Chemical Composition
| Ni | Mo | Fe | Cr | C (maximum) | Co (maximum) | Mn (maximum) | Si (maximum) | Ti (maximum) | W (maximum) | Al (maximum) | Cu (maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ≥ 65.0 | 27.0-32.0 | 1.0-3.0 | 1.0-3.0 | 0.01% | 3.0% | 3.0% | 0.10% | 0.2% | 3.0% | 0.50% | 0.20% |
Physical Properties
- Density: 9.24g/cm³
- Melting point: 1370-1418℃
Application Areas
- Aerospace: Due to its excellent high-temperature performance, Hastelloy B-3 can be used to manufacture aerospace engine parts and rocket engine nozzles.
- Oil and gas industry: Hastelloy B-3 can be used to manufacture downhole tools and production equipment in the process of oil and gas exploration and development.
- Chemical industry: In the chemical production process, Hastelloy B-3 can be used to manufacture equipment such as reactors and heat exchangers to resist corrosion from corrosive media such as acids and alkalis.
- Pharmaceutical industry: Hastelloy B-3 can be used to manufacture pharmaceutical equipment and pipelines in the pharmaceutical production process. Ensure the quality of drugs and the reliability of production.
Key Advantages
- Excellent corrosion resistance: Exhibits excellent performance in various acidic media, with extremely high corrosion resistance. Has excellent resistance to hydrochloric acid corrosion at various concentrations and temperatures, as well as good resistance to corrosion in non oxidizing environments.
- Good mechanical properties: Tensile strength usually above 480 MPa, yield strength usually above 205 MPa, and elongation usually above 40%, demonstrating good ductility.
- High temperature stability: Good thermal stability with a melting point of about 1330-1380°C, and excellent high-temperature oxidation resistance and heat corrosion resistance.
- Good processing performance: Can be processed through various methods such as forging, hot rolling, cold drawing, welding, etc., and can be made into parts of various shapes and sizes.
In summary, Hastelloy B-3 has been widely used in various fields, including chemical industry, petrochemicals, marine engineering, aerospace, etc., due to its excellent corrosion resistance, good mechanical properties, high temperature stability, and processability.
